All the features of a shop vacuum. All in the palm of your hand.
Dyson Duo is a handheld shop vacuum that resolves many of the ergonomic and functional issues that make traditional handhelds unsuitable for cleaning out the inside of a car.

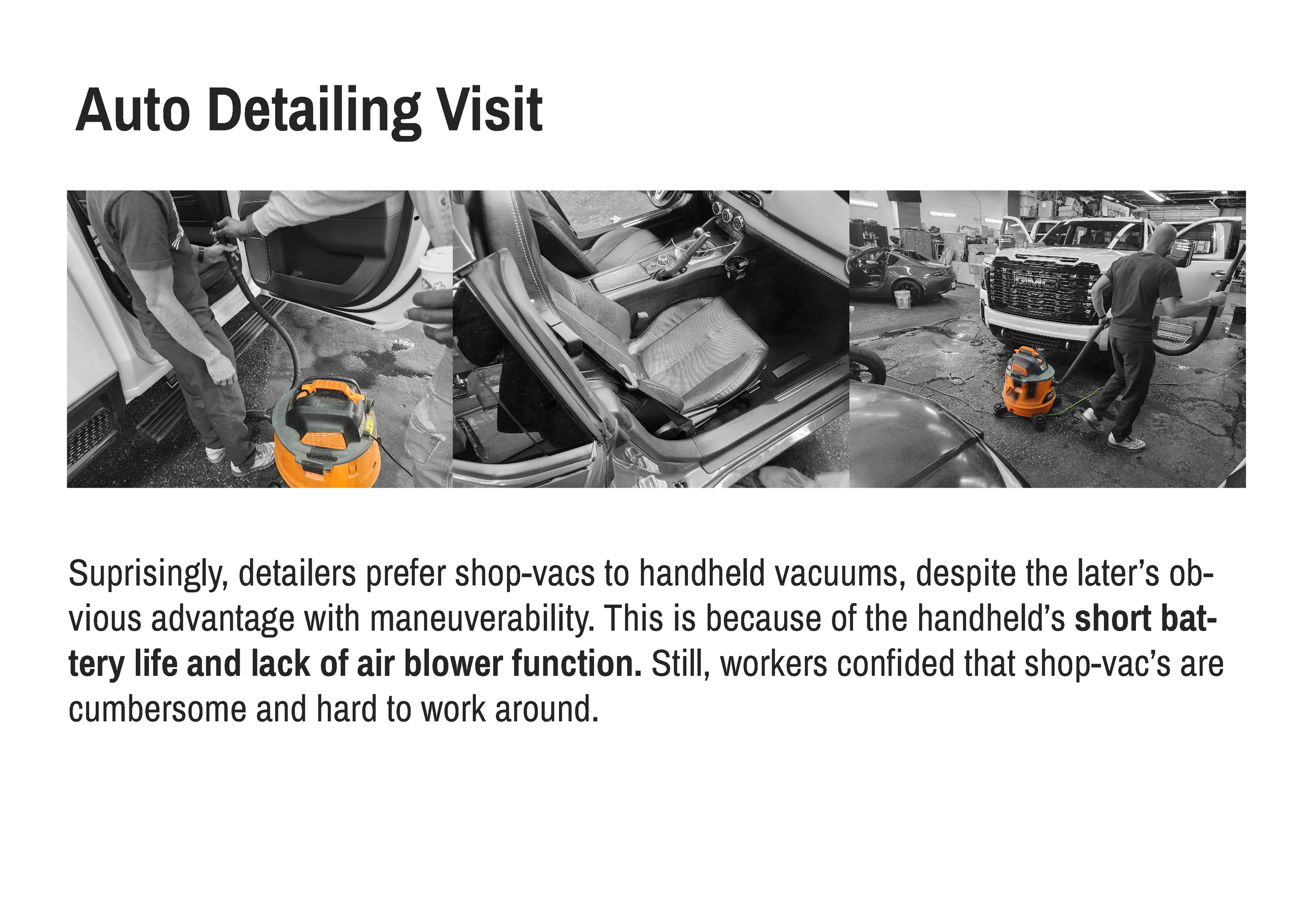

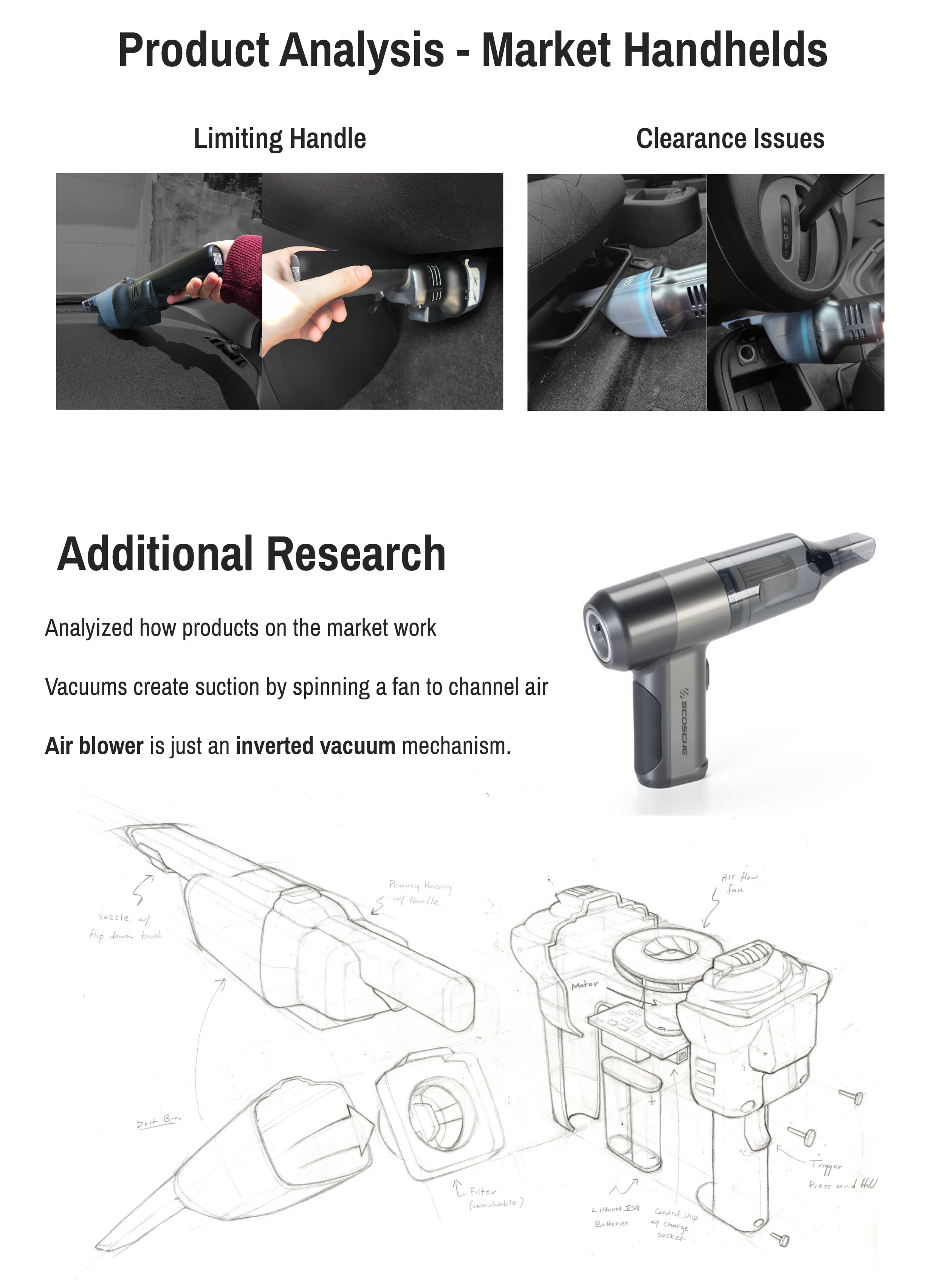

Research

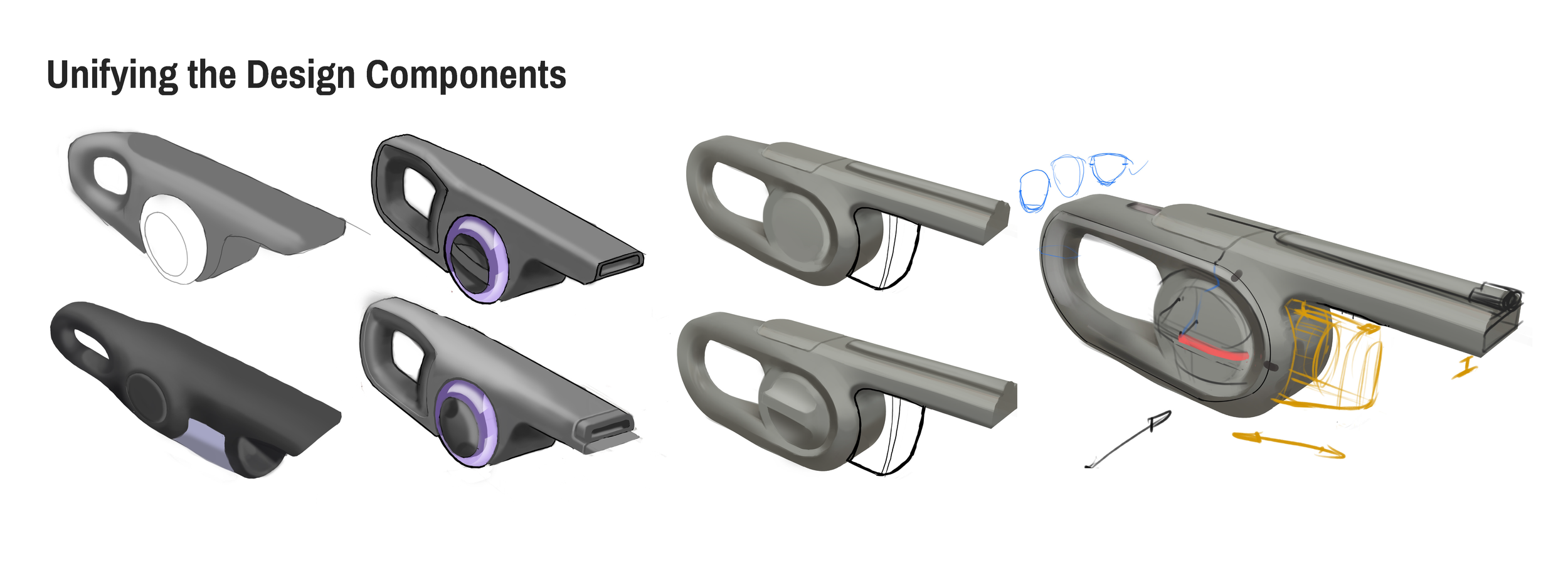

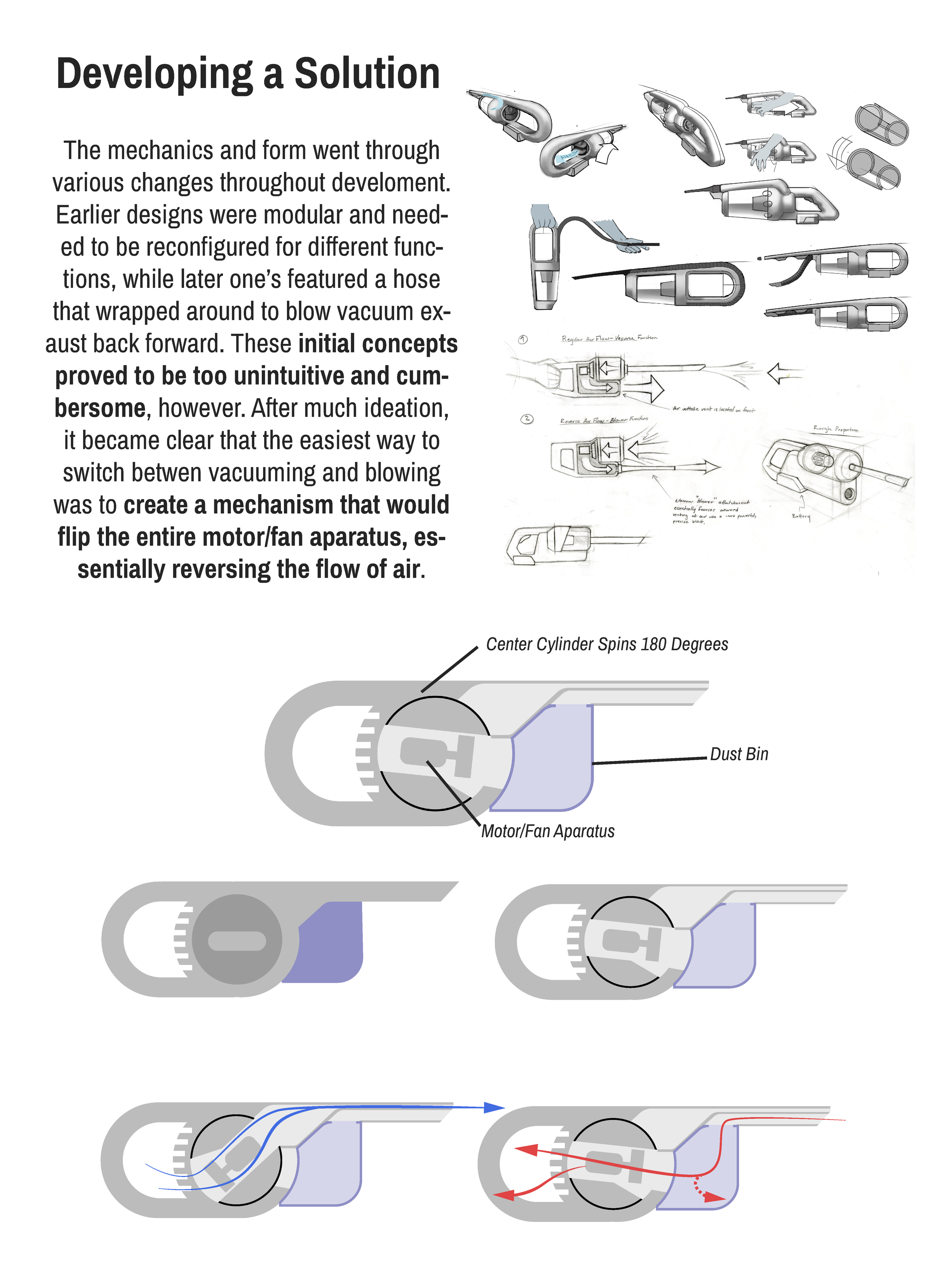

Design Iteration

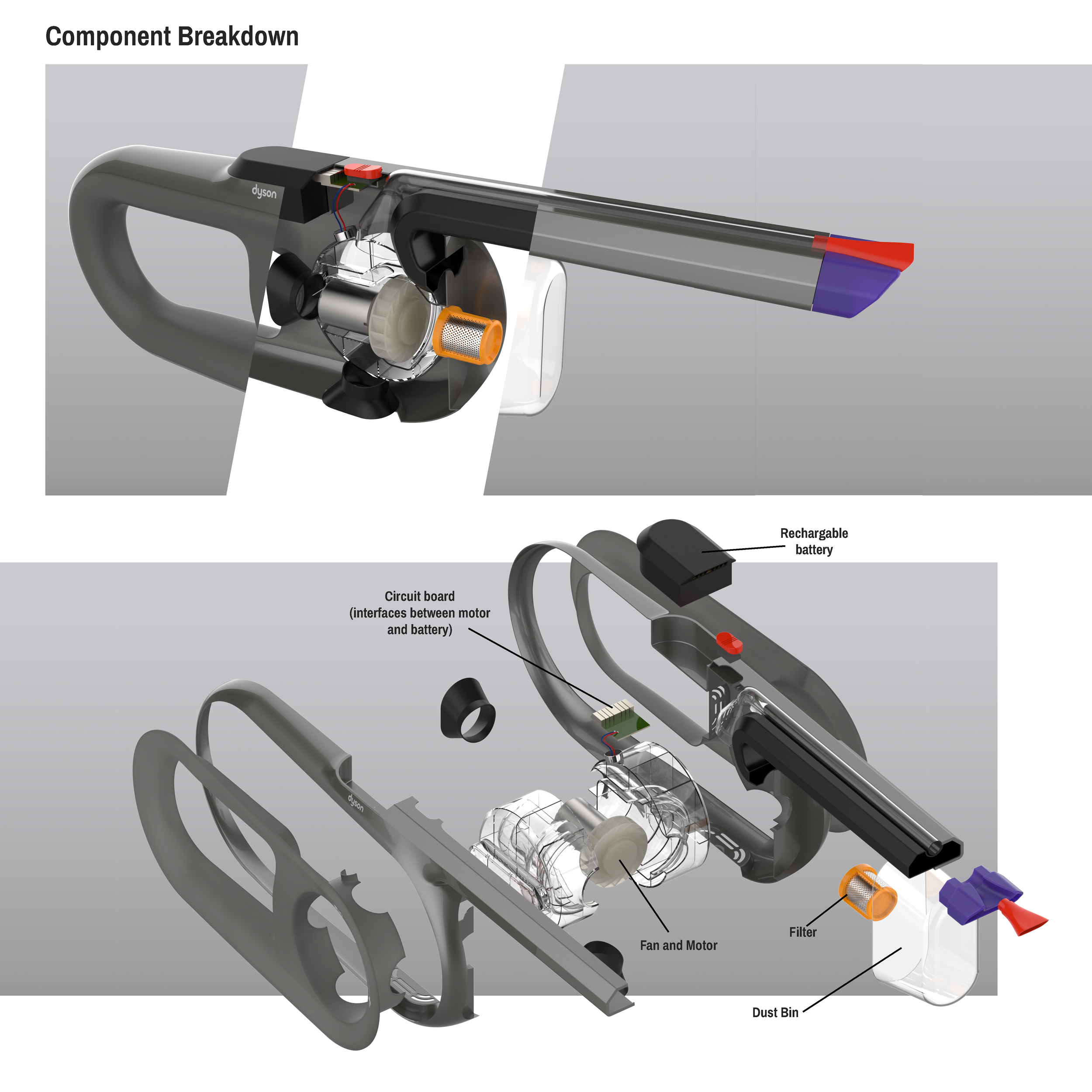

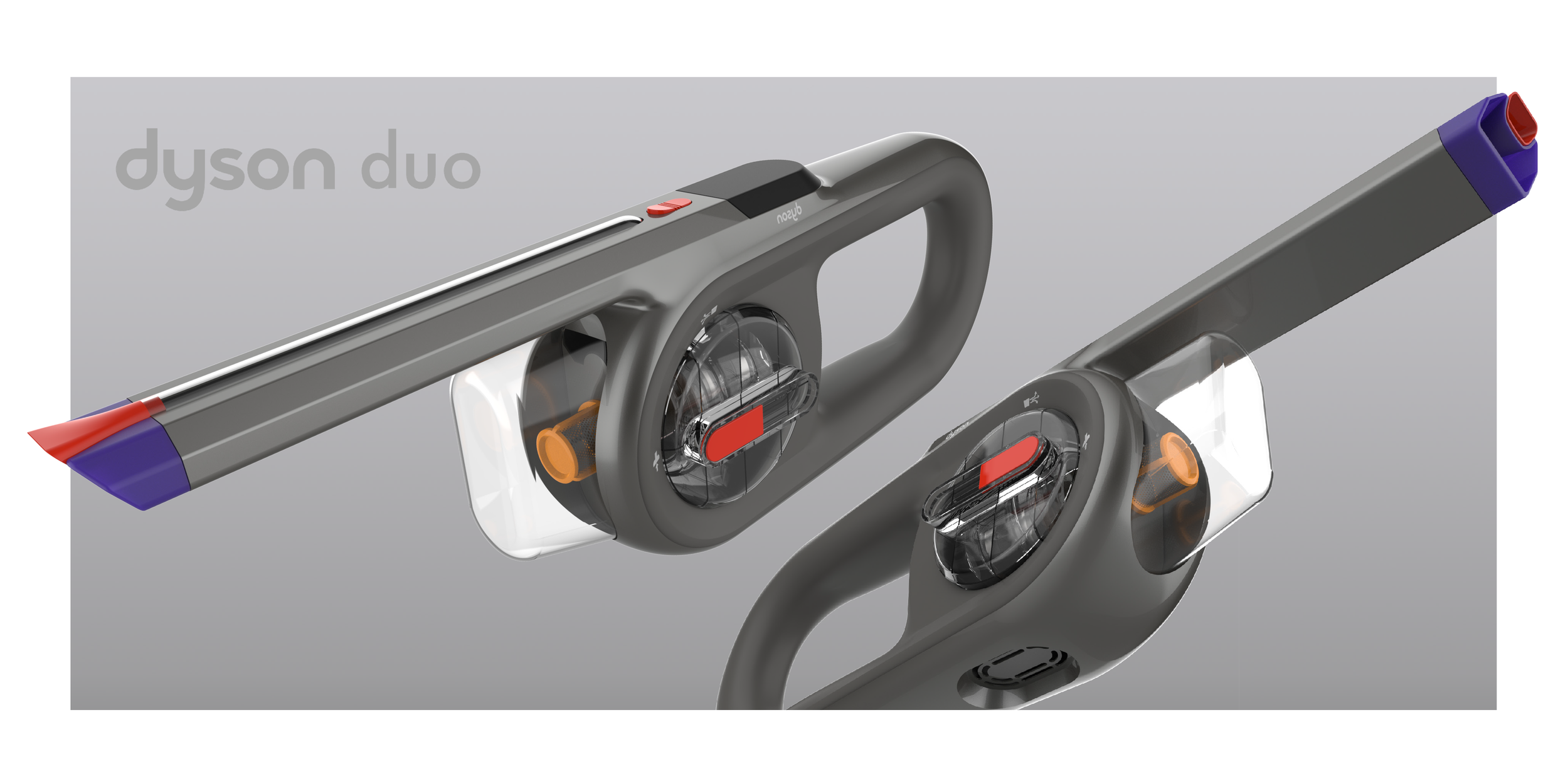

Final CAD and Functionality

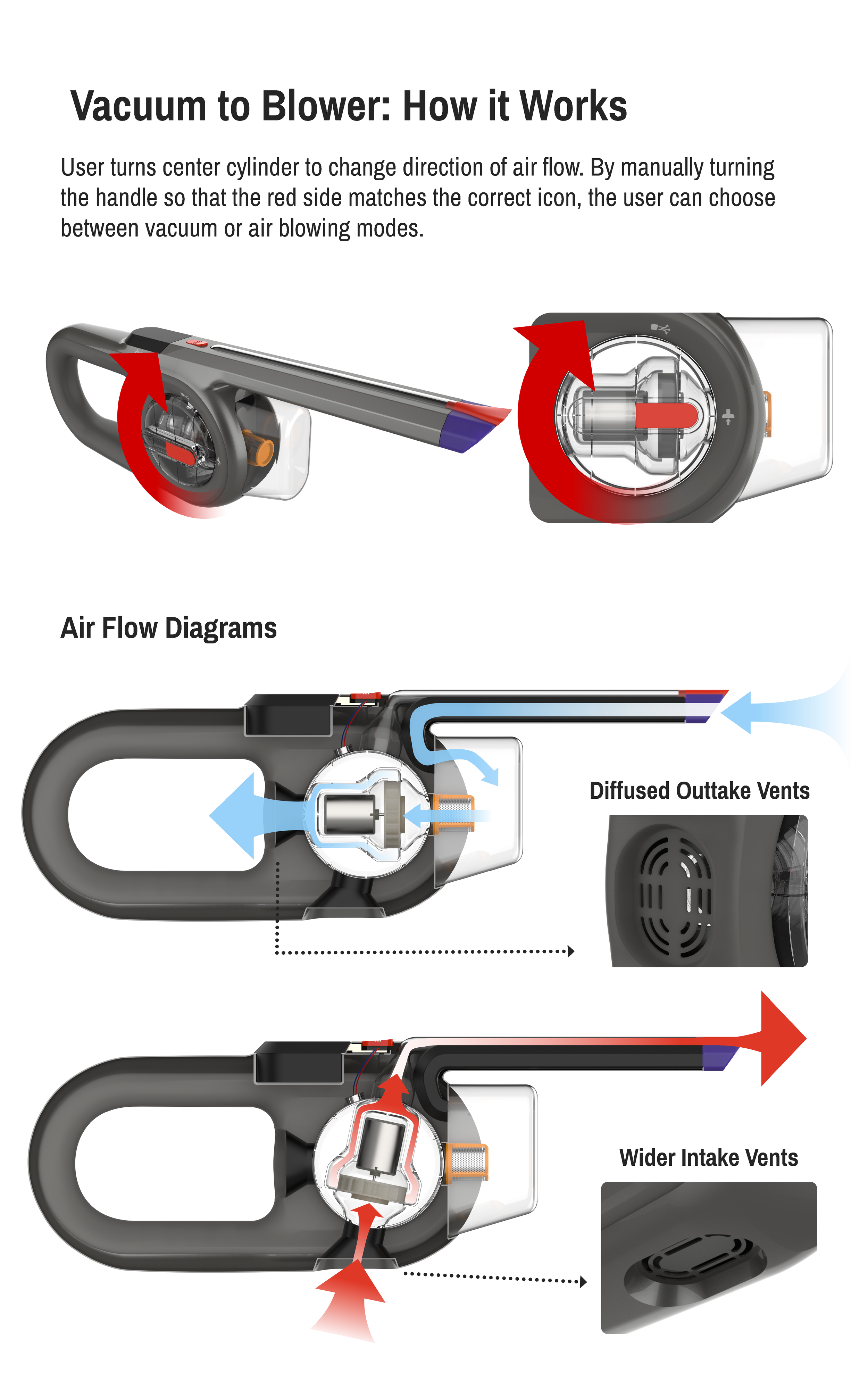

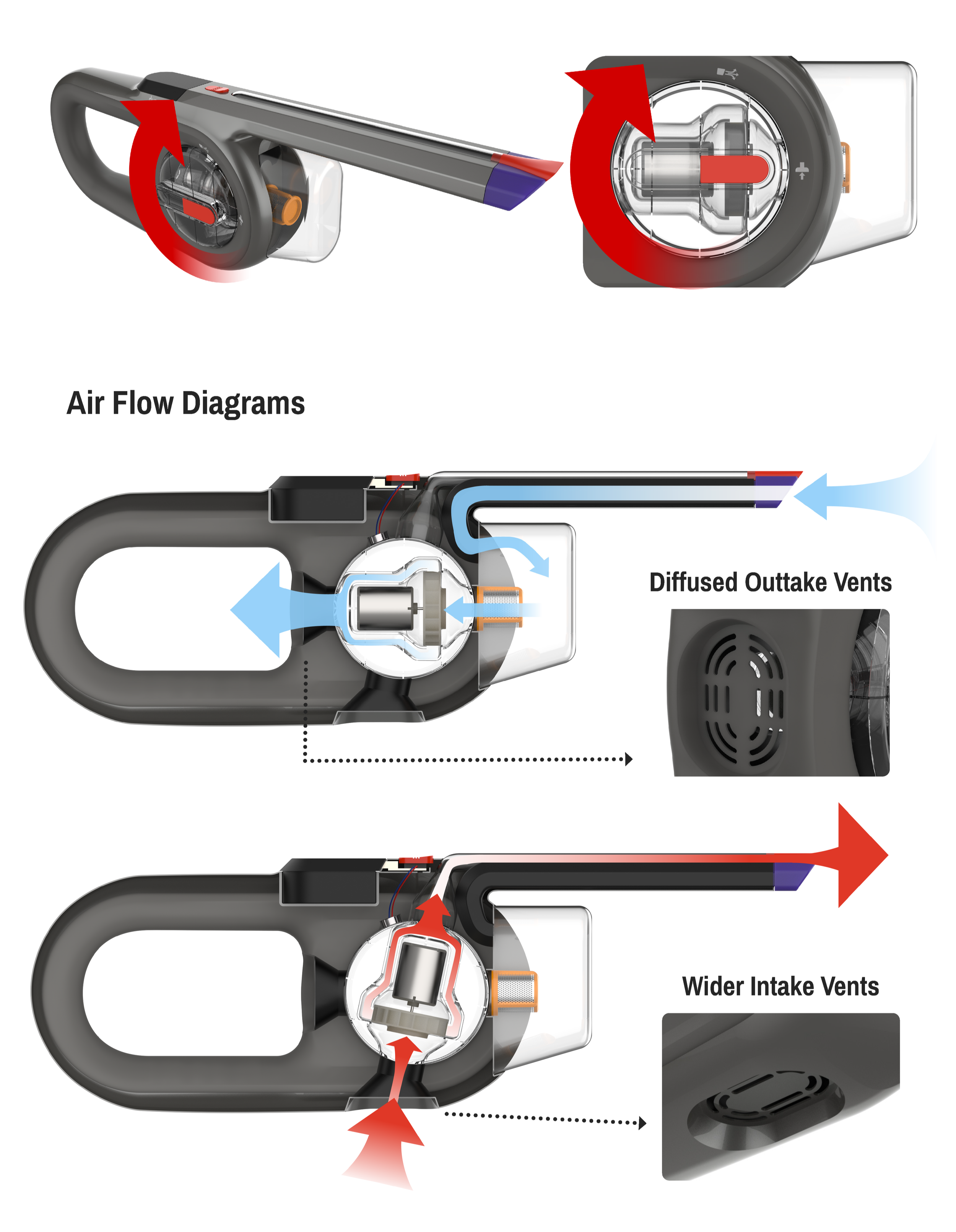

Vacuum to blower: How it works
User turns center cylinder to change direction of air flow. By manually turning the handle so that the red side matches the correct icon, the user can choose between vacuum and air blowing modes.

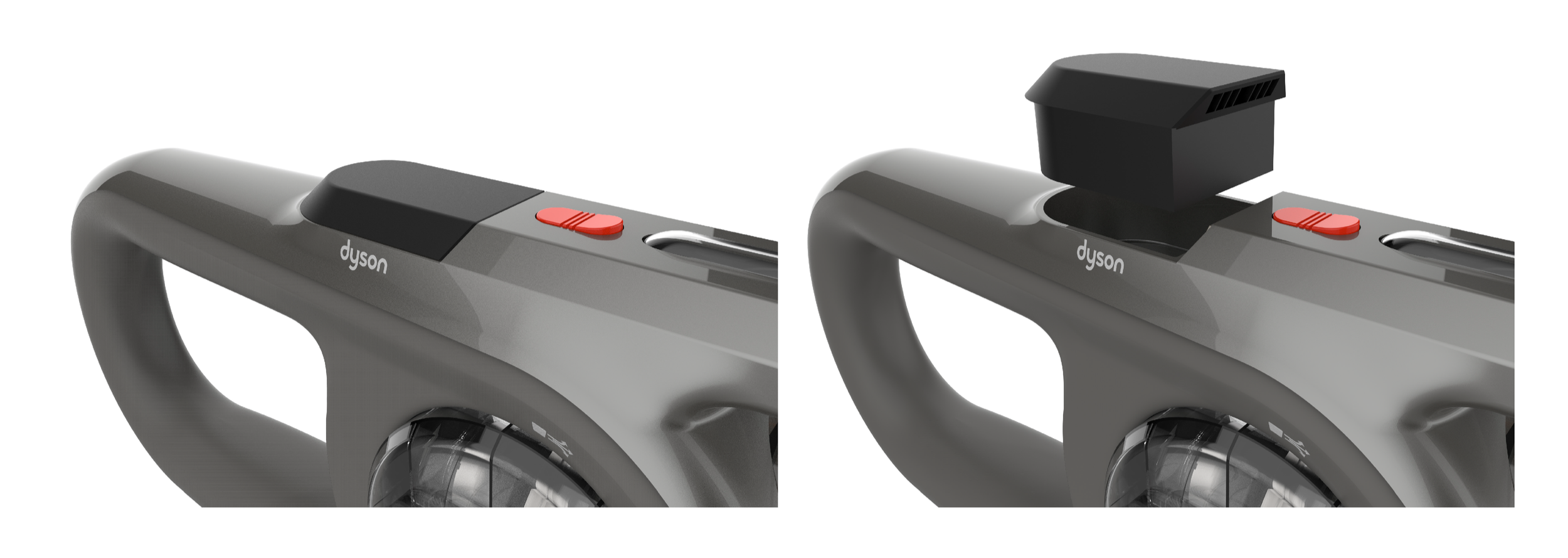

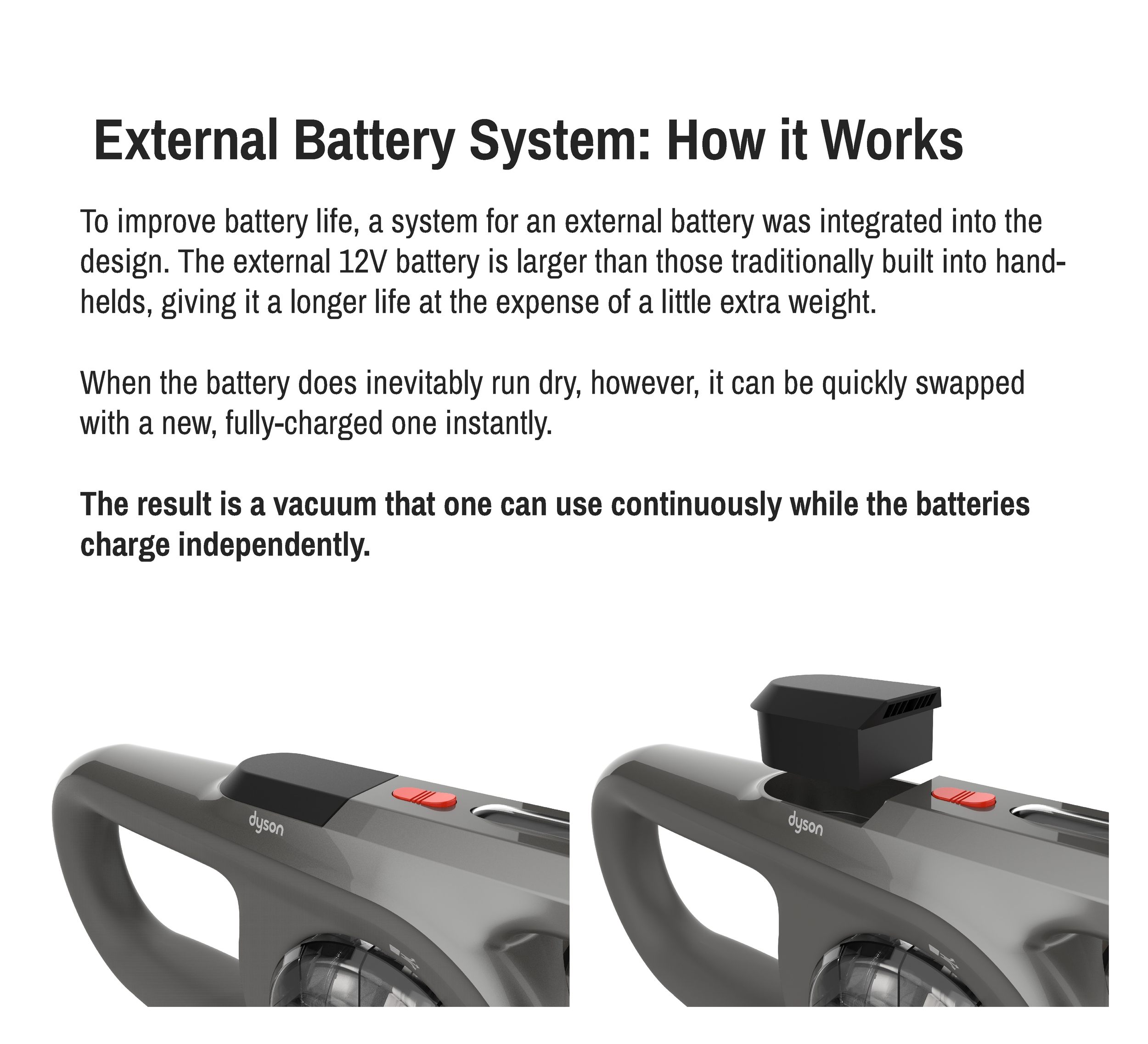

External Battery System: How it works
To improve battery life, a system for an external battery was integrated into the design. The external 12V battery is larger than those traditionally built into handhelds, giving a longer life at the expense of a little extra weight. When the battery does inevitably run dry, however, it can be quickly swapped for a new, fully-charged one instantly.
The result is a vacuum that one can use continuously while the batteries charge independently.
Ergonomics

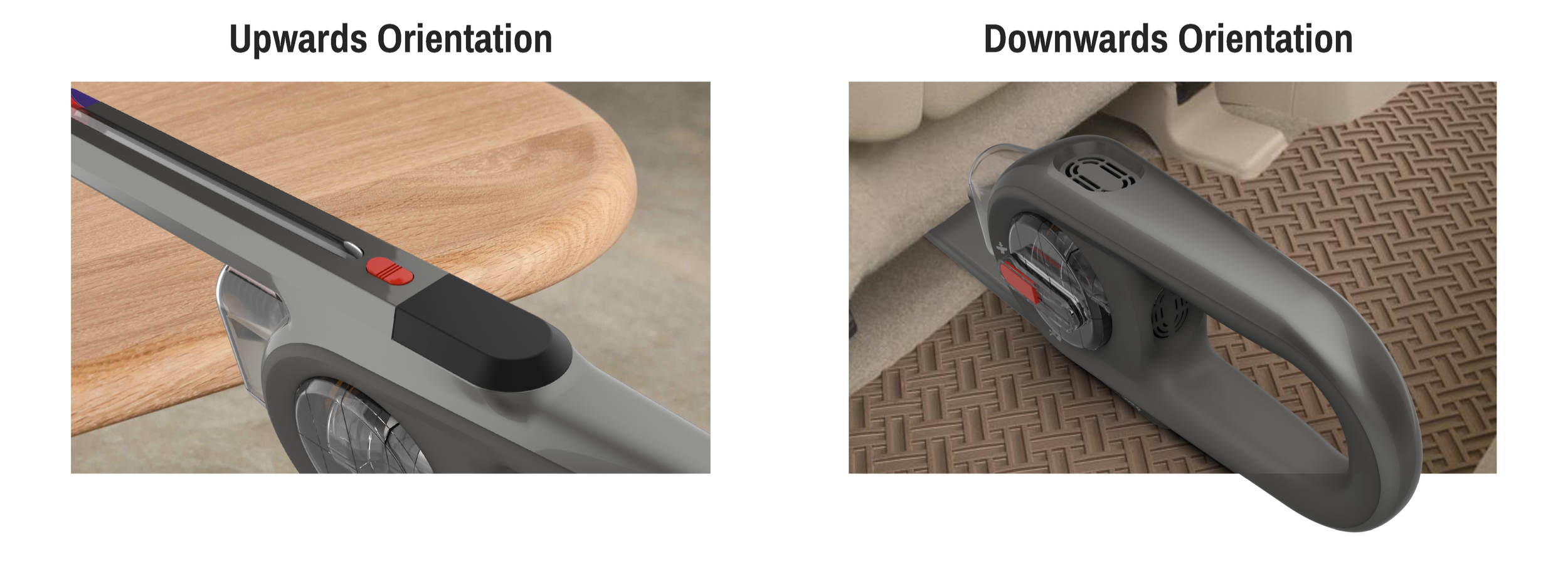

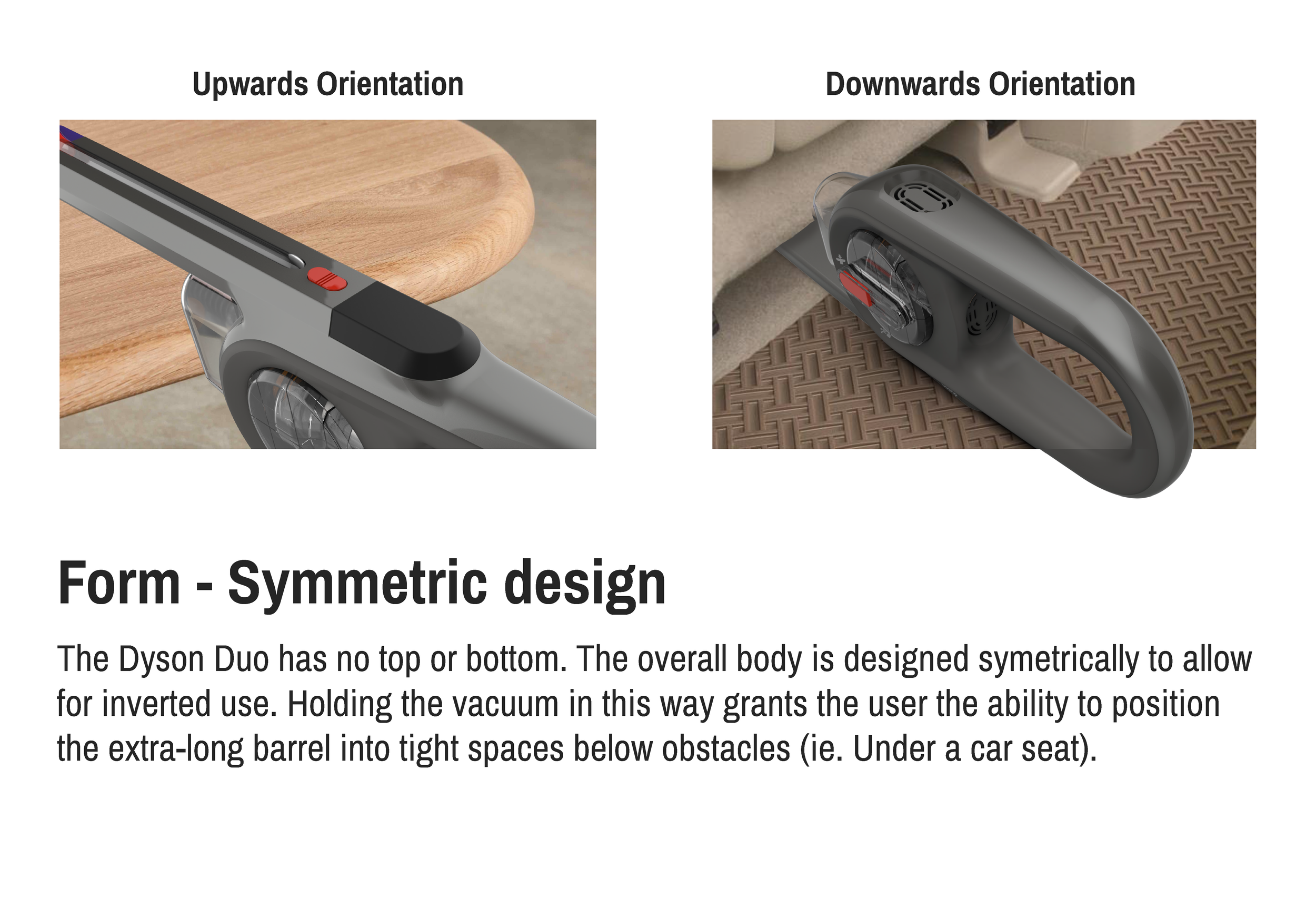

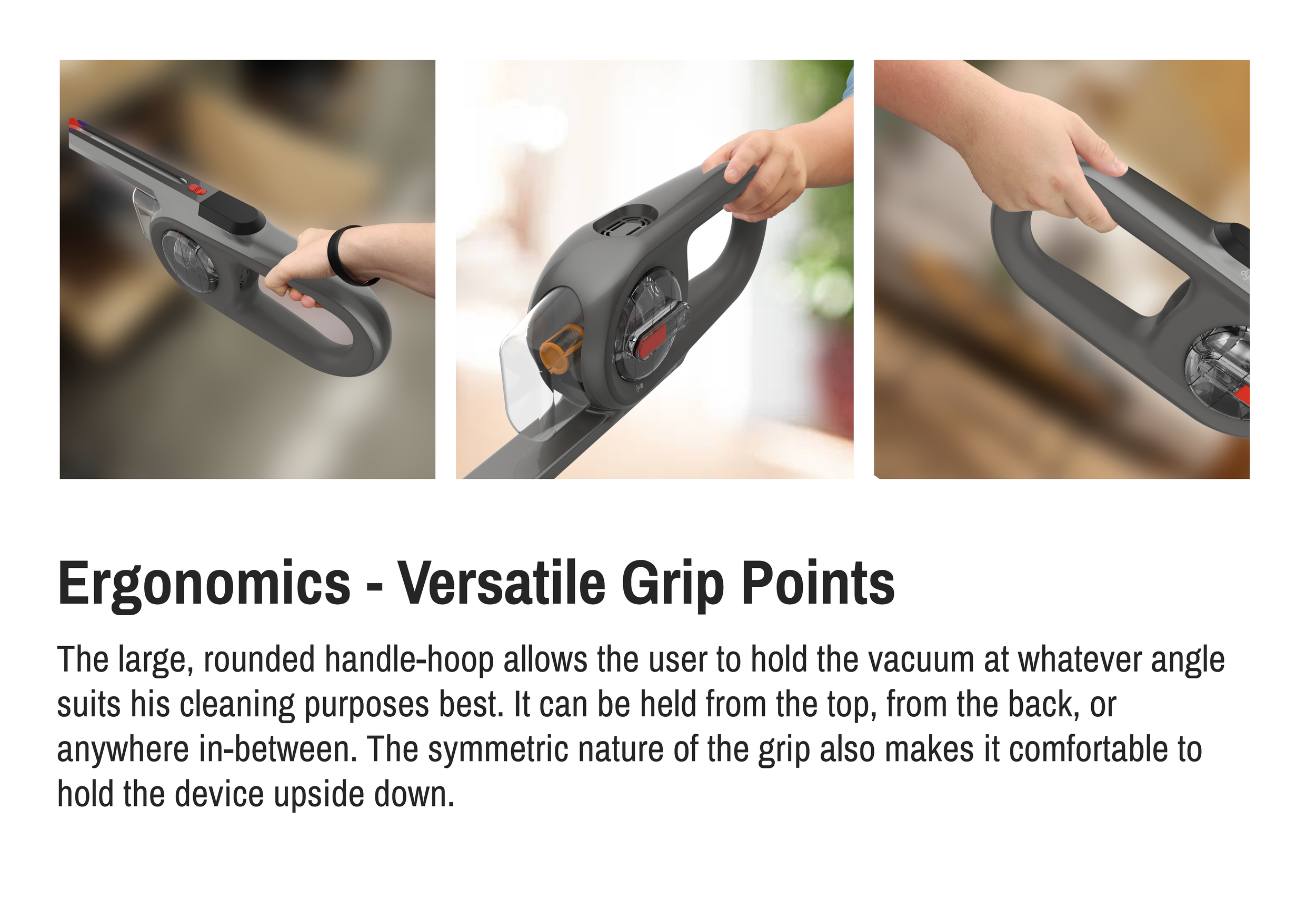

The Dyson Duo has no top or bottom. The entire body is designed symmetrically to allow for inverted use. The large, rounded handle-hoop allows the user to hold the vacuum at whatever angle suits his cleaning purposes best. It can be held from the top, from the back, or anywhere in-between. This allows the user to position the extra-long barrel above or below any tight spaces.

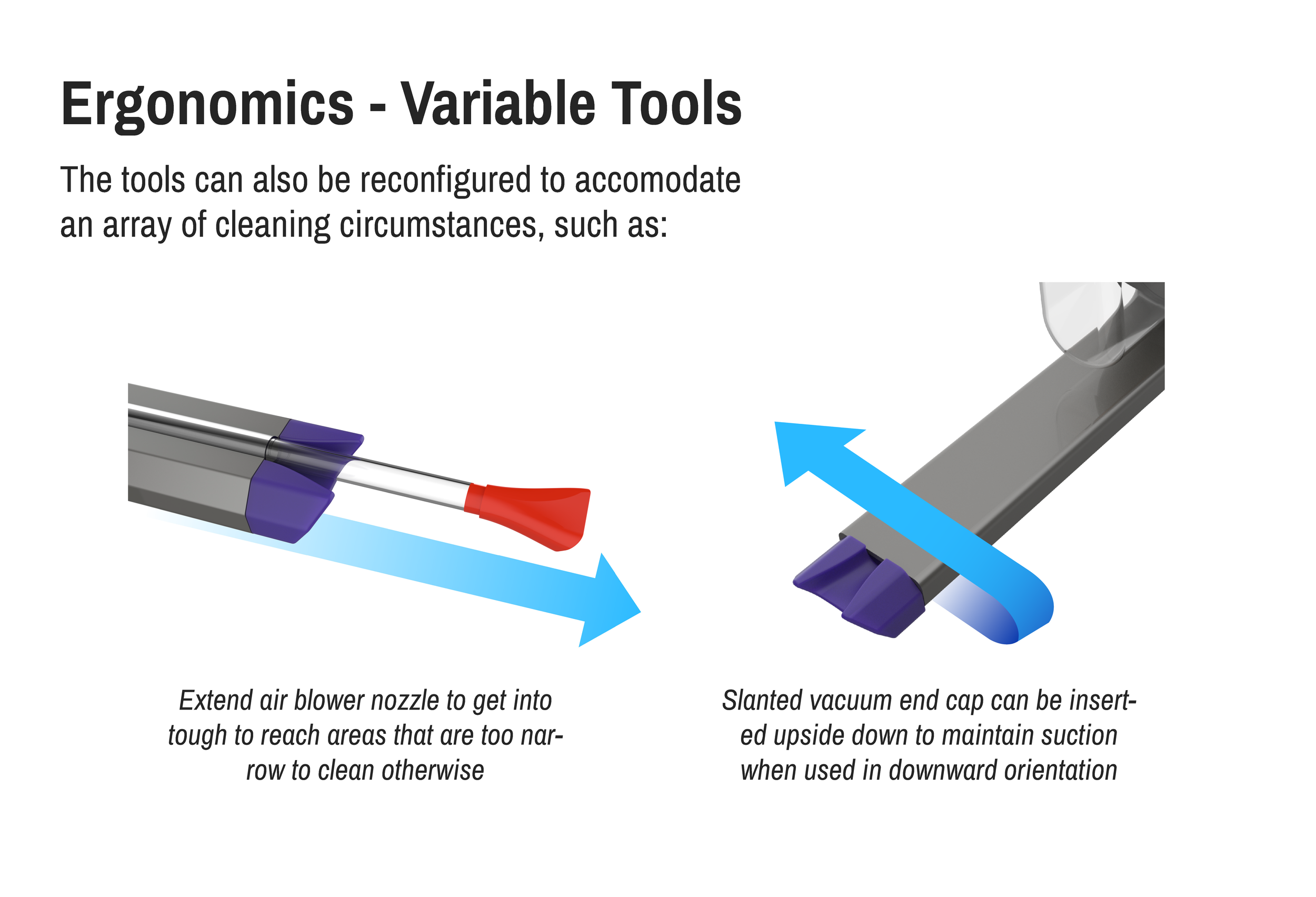

Variable tools
The tools can also be reconfigured to accommodate an array of cleaning circumstances, such as:

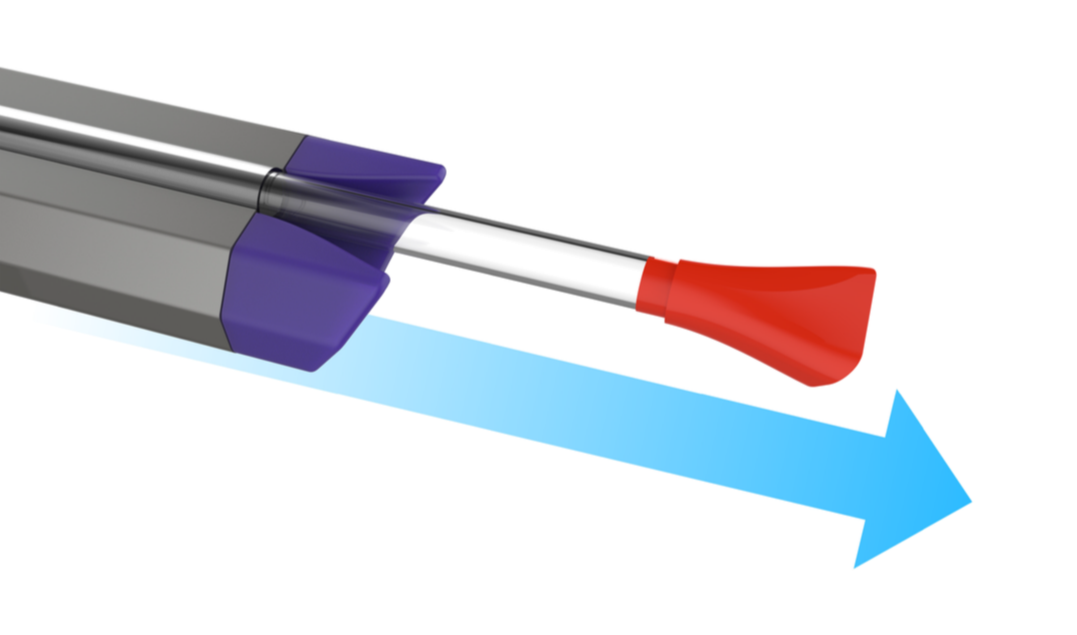

Extend air blower nozzle to get into tough-to-reach areas that are far too narrow to clean otherwise.

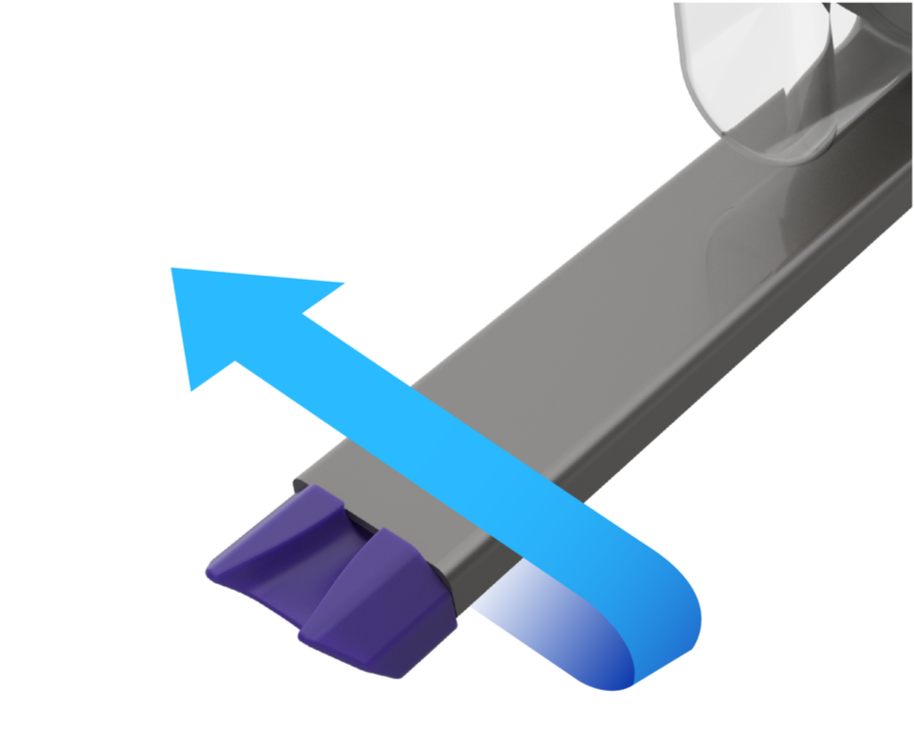

Slanted vacuum end cap can be inserted upside down to maintain suction when used in downwards orientation.
